What Is an Unloading Conveyor and Why It Matters
An unloading conveyor is a powered or gravity-assisted system designed to transfer goods efficiently from trailers, containers, and delivery vehicles into a facility. Unlike generic conveyors, the loading/unloading variant is purpose-built for the dock area: it often features telescoping booms that extend into a truck, ergonomic controls for operators, and safety functions that minimize risks in busy bays. By reducing manual handling and fork-traffic congestion, these systems can compress the time between receipt and putaway, directly impacting productivity and labor utilization.

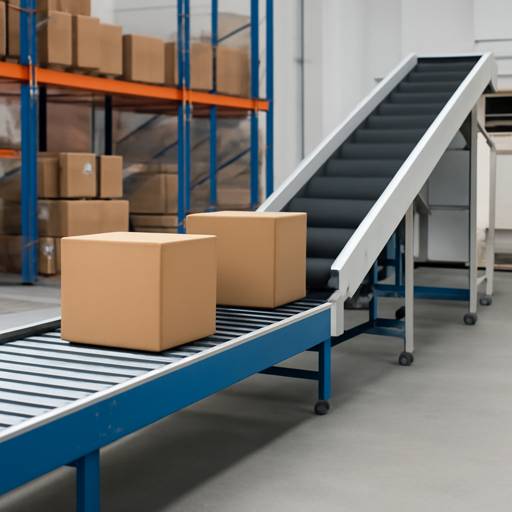

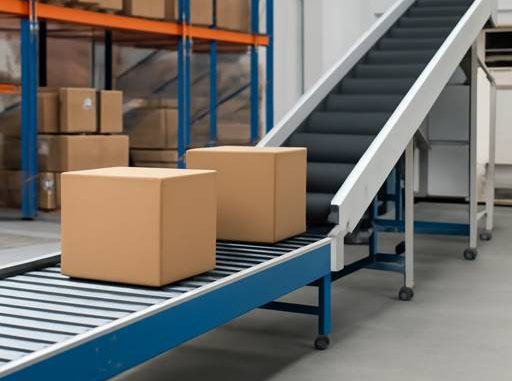

Modern unloading conveyor solutions come in several configurations. Telescopic belt conveyors are the most recognized, providing extendable stages that reach deep into 20–53 ft trailers. Flexible powered roller conveyors can bend and snake to follow irregular paths, ideal for variable dock layouts. Gravity roller lines serve as cost-effective buffers for low-to-medium volumes, while high-friction belts handle polybags and small parcels that could stall on rollers. Many facilities deploy a hybrid: a telescopic unit at the dock door feeding a flexible roller line that distributes items to induction points or sortation.
The business case is compelling. In parcel hubs, every second shaved per carton compounds across tens of thousands of pieces per shift. A dock team manually unloading a 40 ft container might need 45–60 minutes with four workers; with a well-configured unloading conveyor, that same task can drop to 20–30 minutes with fewer strains, fewer rehandles, and less damage. That translates into shorter queue times at doors, better utilization of drivers and tractors, and smoother flow to downstream processes like scanning, weighing, and putaway. Over a year, organizations routinely report double-digit gains in dock throughput and notable reductions in OSHA-recordable incidents tied to repetitive lifting.
Industries that benefit most include express delivery, e-commerce fulfillment, cross-border logistics, general warehousing, and manufacturing receiving. In these environments, product mixes vary from parcels and totes to bulkier cartons, and peak volumes can be volatile. A robust unloading conveyor acts as a shock absorber for these spikes, giving operations a scalable, standardized way to move goods quickly while safeguarding people and product.
Key Design Features and Options That Drive Performance
Performance at the dock is the sum of multiple design choices. At the core is the telescopic architecture: two to five boom stages that extend and retract smoothly, with rugged steel frames to handle daily duty cycles. High-grip belts or driven rollers maintain consistent package flow, while variable-frequency drives provide speed control for different SKUs, from light polybags to heavy cartons. Many systems offer reversible operation to support both loading/unloading with a single device, maximizing utilization in constrained dock footprints.
Ergonomics and safety are paramount. An articulating front tongue or gravity roller transition reduces the gap between the boom and the trailer floor, minimizing lift height and the risk of wrist or shoulder strain. Dead-man controls, mushroom emergency stops, anti-collision bumpers, and light curtains create layers of protection around the moving boom. Bright LED lighting at the boom head improves visibility deep inside trailers. For high-velocity sites, auto-indexing maintains a constant discharge distance as the stack height in the trailer changes, reducing operator adjustments. Hydraulic or electric lift kits align the boom to variable dock and trailer heights, ensuring smooth handoffs even with uneven flooring.
Intelligence matters, too. A PLC-controlled unloading conveyor can integrate with WCS/WMS, barcode scanners, and dimensioning-weighing systems to capture data at first touch, eliminating downstream rework. Photo eyes manage accumulation zones to prevent pile-ups, particularly when downstream equipment is saturated. Predictive maintenance tools—temperature sensors on motors, belt-tension monitoring, and hour meters—anticipate service needs before a stoppage occurs. For facilities concerned about energy use, high-efficiency IE3/IE4 motors, standby modes that idle the system when no product is present, and regenerative drives reduce operating costs without compromising throughput.
When sizing capacity, match real-world demand to equipment specs. Telescopic belt conveyors commonly run between 20–40 meters per minute; typical parcel rates range from 1,500 to 3,000 pieces per hour depending on SKU mix, manual touchpoints, and sortation constraints. If you unload mixed cartons averaging 8 kg with an inter-arrival target of 1.2 seconds, you’ll want a belt width that prevents side-by-side collisions (e.g., 800 mm) and controls that let you throttle speed during fragile or heavy runs. Consider environmental factors: IP-rated components for dusty or humid docks, low-noise rollers near office areas, and abrasion-resistant belts for corrugated-heavy flows. These choices compound into reliable, all-shift performance.
For teams comparing models or exploring modular add-ons, browse options by boom length, belt type, control package, and safety kit using an unloading conveyor catalog to benchmark needs against available configurations.
Selecting, Installing, and Maintaining Your Unloading Conveyor
The best outcomes start with a disciplined discovery process. Begin by auditing your inbound mix: smallest and largest carton dimensions, heaviest unit loads, and packaging styles (polybags, jiffy mailers, totes, shrink-wrapped bundles). Map the inbound schedule—peaks by hour and day—and quantify the average and maximum dwell times at each dock door. Assess trailer types (domestic 53 ft, 40 ft HC, 20 ft), dock heights, and whether you handle floor-stacked or palletized loads. These inputs determine core specs: boom length and stages, belt width, drive power, and whether you need specialized features such as anti-static belts for electronics or ultra-low-friction rollers for larger, delicate cartons.
Space planning is often the swing factor. A unloading conveyor needs clear approach zones both inside the trailer and on the receiving side. Plan for turn radii if you’re pairing the telescopic with a flexible roller system, and reserve space for operator walkways, emergency egress, and maintenance access. Don’t overlook shore power and cable routing: energy chains and retractable cable reels keep floors tidy and reduce trip hazards. Facilities integrating the dock line with scanners, printers, or DWS should define conduit paths and data drops early to avoid retrofit costs later.
Installation follows a predictable path: site survey and measurement; anchoring or freestanding setup depending on structural needs; electrical and control panel placement; I/O mapping to any WCS or safety PLC; and a structured FAT/SAT approach to verify load tests, E-stop response, and speed accuracy. Operator training is crucial—cover safe start-up, use of dead-man controls, speed selection for different SKU mixes, and best practices like keeping the front edge aligned with the trailer floor to minimize lift heights. Change management matters as much as mechanics: align labor planning so that dock teams and downstream stations ramp together, ensuring the conveyor’s added velocity does not simply create a new bottleneck at receiving or putaway.
Proactive maintenance protects your ROI. Daily walk-arounds catch mis-tracking belts, debris accumulation, or worn nose bars. Weekly routines include roller inspection, checking photo-eye alignment, verifying E-stop circuitry, and testing speed control response. Monthly, review drive chain tension (if applicable), motor temperatures, and boom-slide lubrication; replace wear strips and keep a critical spares kit—belts, motor/gearbox, photo eyes, and control cards—on hand to cut MTTR. Track KPIs like unload minutes per trailer, pieces per labor hour, and unplanned downtime by cause. Teams that instrument their unloading conveyor with simple counters and runtime logs often see a 15–25% reduction in stoppages within a quarter, fueled by targeted fixes rather than guesswork.
Real-world gains illustrate the playbook. A cross-border warehouse receiving electronics and apparel introduced two telescopic belt conveyors with articulating tongues and auto-indexing. By standardizing to 800 mm belts and tying the conveyors to upstream scanning, they cut average unload time for 40 ft containers from 48 to 34 minutes while reducing manual lifts by an estimated 35%. With consistent ergonomics and speed control, staff turnover on dock shifts fell, and the facility absorbed seasonal peaks without adding dock doors. The combination of smart design choices, disciplined commissioning, and a light-but-regular maintenance cadence transformed the dock from a constraint into a competitive advantage.
Ultimately, selecting and running a high-performing unloading conveyor is about aligning equipment capabilities with your product, people, and process. When you right-size boom length, belt type, controls, safety layers, and layout—and support it with training and data-driven upkeep—you compress dock-to-stock time, stabilize labor, and build a more resilient inbound operation that scales with demand.
